Digit Heigh |
 |
028 = 0.28" |
|
|
032 = 0.32" |
036 = 0.36" |
040 = 0.40" |
050 = 0.50" |
056 = 0.56" |
100 = 1.00" |
120 = 1.20" |
180 = 1.80" |
500 = 5.00" |
700 = 7.00" |
Dot Size |
 |
02 = 1.9mm |
|
04 = 4.8mm |
05 = 5.0mm |
07 = 7.6mm |
10 = 10mm |
20 = 20mm |
Color Code |
|
A |
Ultra Bright Red |
B |
|
C |
High Red |
D |
Red |
F |
Orange (Reddish) |
G |
Super Bright Orange |
I |
Yellow (Lemon) |
JU |
Super Bright Green |
PG |
Pure Green |
J |
Hight Green |
K |
Green |
BL |
Blue |
BH |
Super Bright Blue |
BU |
Ultra Bright Blue |
W |
White |
WH |
Super Bright |
WU |
Ultra Bright White |

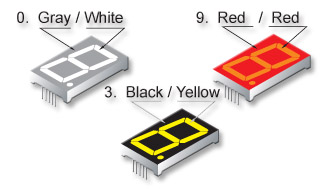

Face & Segment Color |
 |
0 |
Gray / White |
1 |
|
2 |
Red / White |
3 |
Black / Yellow |
4 |
Black / Red |
5 |
Gray / Red |
6 |
Black / Green |
7 |
Gray / Green |
8 |
Gray / Yellow |
9 |
Red / Red |
S |
Customize |

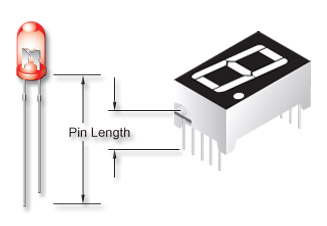

Pin Length |
 |
A |
8.30mm |
B |
|
C |
11.80mm |
D |
12.00mm |
E |
12.80mm |
F |
13.00mm |
G |
15.00mm |
H |
17.80mm |
I |
21.00mm |
J |
33.00mm |
S |
Customize |

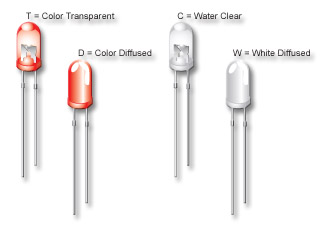

Lens Color |
 |
C |
Water Clear |
D |
|
T |
Color Transparent |
W |
White Diffused |
S |
Customize |
Column x Row No |
 |
44=4 x 4 |
|
58=5 x 8 |
88=8 x 8 |
1616=16 x 16 |
